We have a new visual profile that should be followed in the ThinLinc Client installer.
Note that the client installer seemingly works perfectly fine under Wine on Fedora 35.
Currently, the installers have gotten new Welcome and Finish pages, along with a changed top banner. Divider on all pages ════════════════════ We currently have a blue divider at the bottom of the Welcome and Finish pages. Ideally, we'd also like this divider on the rest of the pages. Our current idea is to do things in the same way as tlclient for these pages, i.e. moving the divider up to below the ThinLinc logo and making it 5px thick (instead of 10px) for these pages. I've had a quick look at this and from what I can tell things are not as straightforward as for the Welcome and Finish pages. Attempting to add the blue divider for the remaining pages in the same way as in the Welcome/Finish page results in a segfault in nsDialogs. My suspicion is that this is due to these pages not being built with nsDialogs. So we'll likely need to take a lower-level approach to add the divider to these pages. Misc notes ══════════ The installers work reasonably well in Wine. However, there is a bunch of minor graphical differences between Wine and an actual Windows machine, so testing with Wine does not replace final testing on an actual Windows machine. > ┌──── > │ $ sudo dnf install -y wine > │ $ wine ./client-bundle/client-windows/tl-4.14.0post-client-windows.exe > │ $ wine ~/.wine/drive_c/Program\ Files/ThinLinc\ Client/uninstall.exe > └──── Since the client customizer builds an NSIS client installer, it is important to check that the client customizer works as intended after changes to the client installer. NSIS does not have automatic sizing of UI components. So make sure that the installers look good under all translation languages.
I consider this done now. I made a new header image that includes a 5px high divider, similar to the one in the ThinLinc client. I also made the background white for the rest of the installer pages to fit better with the new welcome and finish pages. I have verified that my changes work on wine, Windows 10 and Windows 11. On Windows 11 I have tested: ✓ English, Swedish, French and Spanish languages ✓ Installer ✓ Uninstaller ✓ Customizer ✓ Setup generated by customizer On Windows 10 I have tested: ✓ English installer Using wine from my Fedora 36 workstation, I have tested: ✓ English, Dutch, French, German, Italian, PortugeuseBr, Spanish and Swedish ✓ Installer ✓ Uninstaller The new images look sharp, and all translations seem to fit.

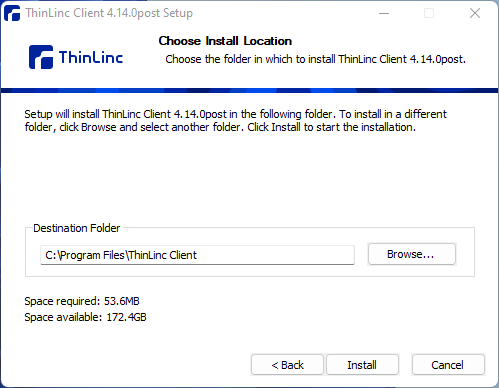

Created attachment 1052 [details] Screenshot showing gray corners on buttons in windows installer All buttons have rounded corners on Windows 11, the old gray background can be seen in the corners here. The buttons are perfectly rectangular on Windows 10. This means things look fine on Windows 10.
The divider on the start and finish pages look quite different compared to the thinner divider in the header. I will fix this by picking a smaller scale and a different part of the pattern for the start and finish divider.
General ============================================ Using dev build #2670 on Windows 11 the following wizards have been tested, - client installer - client uninstaller - customizer installer - customizer uninstaller - customized client installer - customized client uninstaller with languages - English - Swedish - Spanish - Portuguese - German - Dutch - Italian - French The same wizards were tested on Windows 10 with languages - English - Swedish - Portuguese - Italian Features of the new visual profile is properly in place, and the GUI looks good for the majority of localizations. There are some spatial issues, in particular with Italian and Portuguese, reported in bug 7979. Acceptance criteria ============================================ [✓] The windows installers should follow our new visual profile [ ] The windows installer GUI layouts should look good with all our supplied translations Conclusion ============================================ Considering acceptance criteria #2, perhaps a few minor tweaks to the allowed text spaces mentioned in bug 7979, or slightly reducing the strings themselves, would render this bug solved.
(In reply to Samuel Mannehed from comment #30) > Created attachment 1052 [details] > Screenshot showing gray corners on buttons in windows installer > > All buttons have rounded corners on Windows 11, the old gray background can > be seen in the corners here. > > The buttons are perfectly rectangular on Windows 10. This means things look > fine on Windows 10. This was fixed in r38737
(In reply to Samuel Mannehed from comment #31) > The divider on the start and finish pages look quite different compared to > the thinner divider in the header. I will fix this by picking a smaller > scale and a different part of the pattern for the start and finish divider. Fixed in r38738
The header subtitle and header title are now vertically aligned as well. I will not change the layout to make space for lengthy translations here. This has been a problem before and will be handled under bug 7979. We can consider this resolved once again.
The bottom part around the buttons on the welcome page is now also white, like the rest of the installer.
As mentioned in comment 42, the color change to the bottom part apparently bleeds into the content area above, causing visible white/grey contrasts.
(In reply to Tobias from comment #44) > As mentioned in comment 42, the color change to the bottom part apparently > bleeds into the content area above, causing visible white/grey contrasts. Fixed in r38744
General ============================================ Tested bug using server build #2771 on RHEL8 and client build #2678 on Windows 10 and 11, with languages English, Swedish, Italian, and Portuguese. The coloring problems mentioned in comment 44 have been resolved. Moreover, while the minor language spatial issues mentioned in comment 32 persists, they are handled separately in another bug. Acceptance criteria ============================================ [✓] The windows installers should follow our new visual profile [✓] The windows installer GUI layouts should look good with all our supplied translations Conclusion ============================================ This bug is now considered ready to be closed.
Quick testing of the change introduced in comment 48 -- using same server/client setup as in comment 47 -- reveals retained proper coloring of the entry and finish page.
