Bug 5694 - Format conversion from nearest to thinlocal messes up margins for print jobs
Summary: Format conversion from nearest to thinlocal messes up margins for print jobs
Status: NEW
Alias: None
Product: ThinLinc
Classification: Unclassified
Component: Printing (show other bugs)
Version: trunk
Hardware: PC Unknown
: P2 Normal
Target Milestone: LowPrio
Assignee: Henrik Andersson
URL:
Keywords:
Depends on:
Blocks:

Reported: 2015-10-30 14:29 CET by Karl Mikaelsson
Modified: 2015-11-03 10:58 CET (History)
1 user (show)

See Also:
Acceptance Criteria:


Attachments

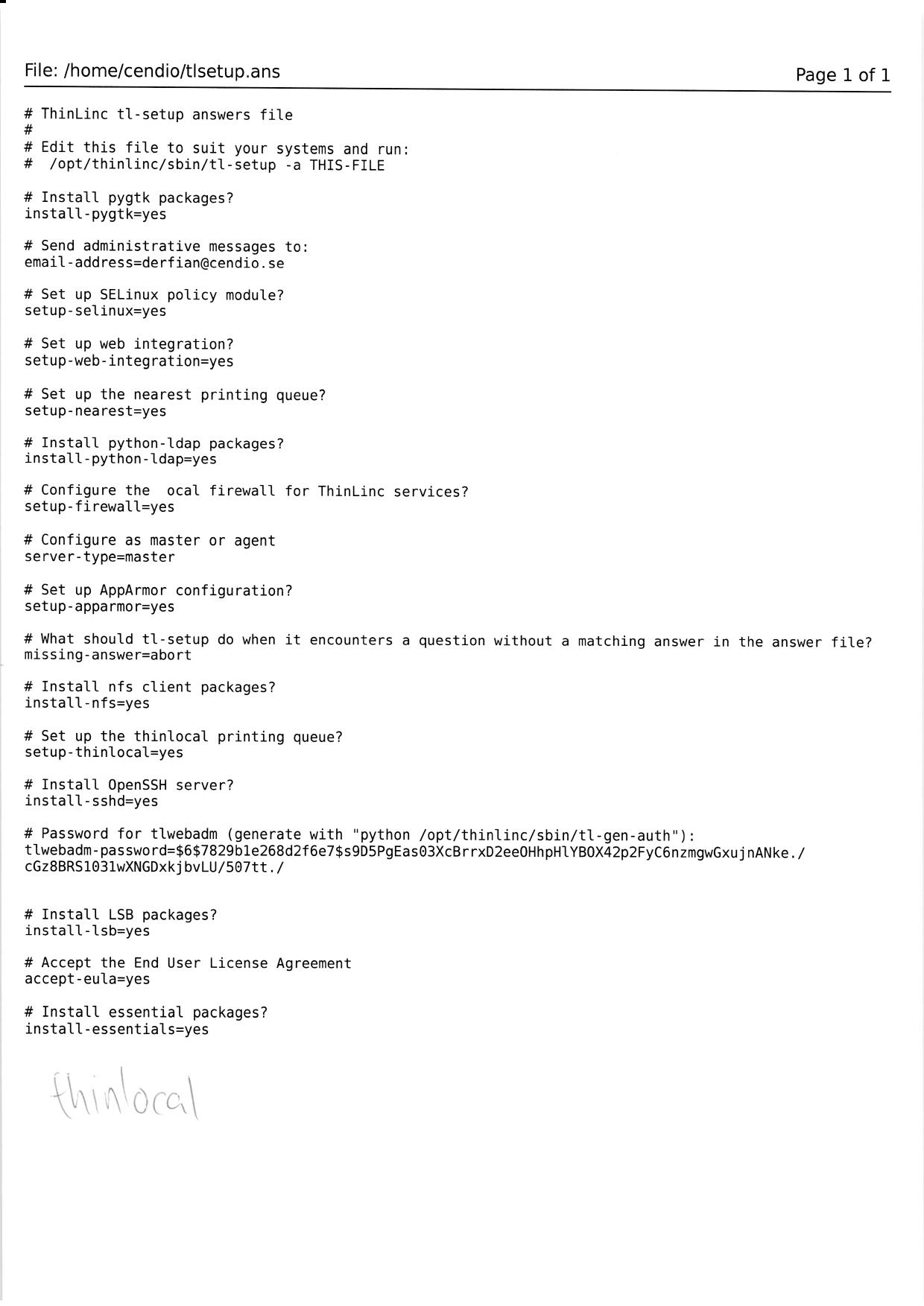

Correctly printed document via thinlocal (147.81 KB, image/jpeg)
2015-10-30 14:29 CET, Karl Mikaelsson
Details

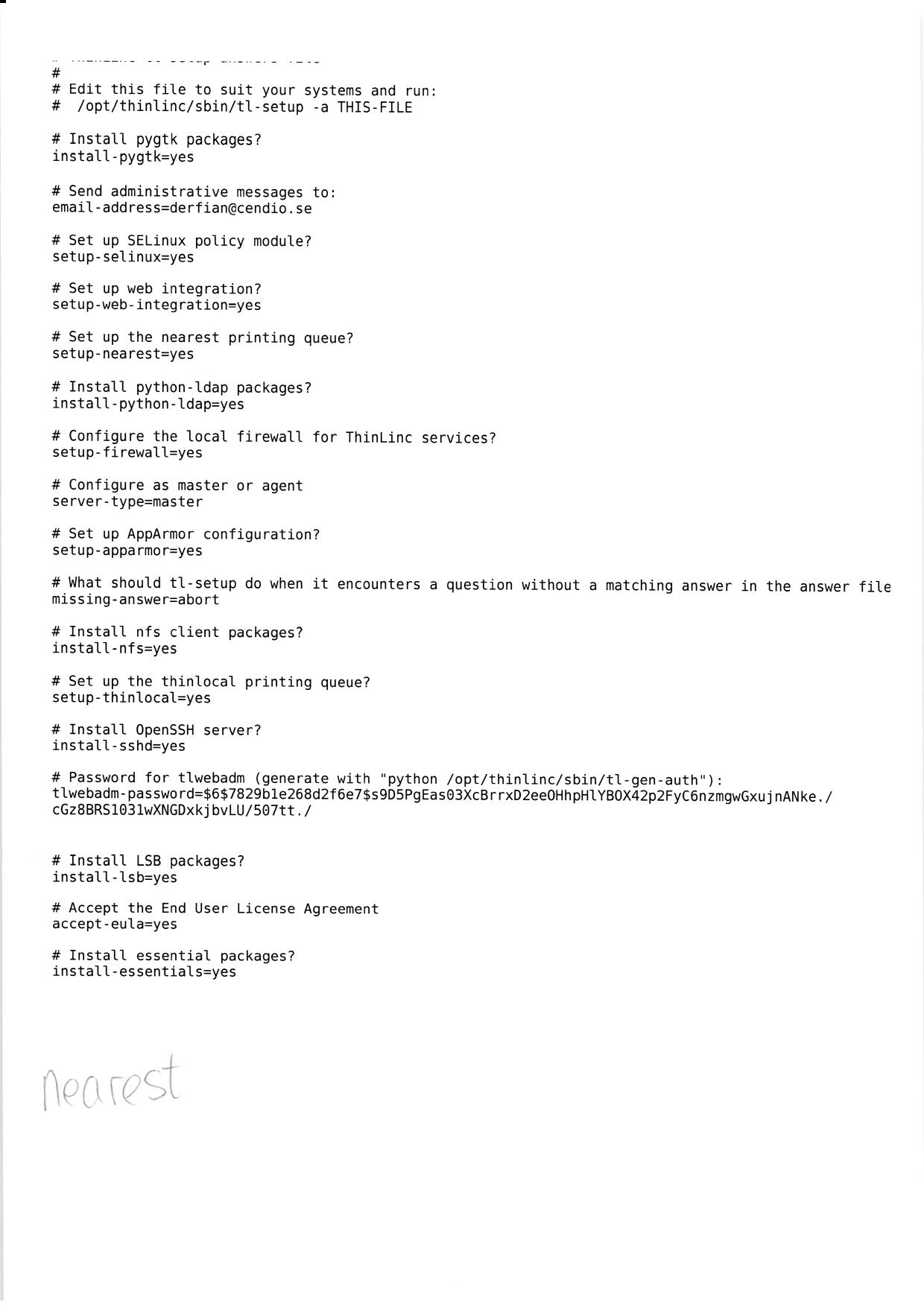

A distorted print via nearest (through thinlocal) (140.70 KB, image/jpeg)
2015-10-30 14:29 CET, Karl Mikaelsson
Details

Description Karl Mikaelsson cendio 2015-10-30 14:29:18 CET
Created attachment 654 [details]
Correctly printed document via thinlocal

Noticed on Ubuntu 14.04 (x86_64), ThinLinc 4.5.0rc1.

Scenario: thinlocal is configured as someone's nearest printer. Printing directly to thinlocal results in a properly printed document. Printing to nearest results in the same document shifted up and right with some lines/characters missing.

This is what CUPS on the ThinLinc server said about the jobs and their filters, and a snippet from the data sent to the printer.

thinlocal:
> D [30/Oct/2015:12:46:24 +0100] [Job 20] 1 filters for job:
> D [30/Oct/2015:12:46:24 +0100] [Job 20] - (application/pdf to printer/thinlocal, cost 0)

data:
> << /Creator (cairo 1.13.1 (http://cairographics.org))
>    /Producer (cairo 1.13.1 (http://cairographics.org))
> >>

nearest:
> D [30/Oct/2015:12:46:40 +0100] [Job 21] 3 filters for job:
> D [30/Oct/2015:12:46:40 +0100] [Job 21] pdftopdf (application/pdf to application/vnd.cups-pdf, cost 66)
> D [30/Oct/2015:12:46:40 +0100] [Job 21] pdftops (application/vnd.cups-pdf to application/vnd.cups-postscript, cost 100)
> D [30/Oct/2015:12:46:40 +0100] [Job 21] - (application/vnd.cups-postscript to printer/nearest, cost 0)

data:
> <</Producer(GPL Ghostscript 9.10)
> /CreationDate(D:20151030124645+01'00')
> /ModDate(D:20151030124645+01'00')
> /Creator(GPL Ghostscript 910 \(ps2write\))
> /Author(\(cendio\))
> /Title(\(tlsetup.ans\))>>endobj
Comment 1 Karl Mikaelsson cendio 2015-10-30 14:29:51 CET
Created attachment 655 [details]
A distorted print via nearest (through thinlocal)
